Coal preparation is a crucial step in ensuring the quality and efficiency of coal utilization. Several physical separation methods are widely used in the industry to remove impurities and improve coal grade. Here are some key techniques:
1. Dense Medium Separation (DMS)
DMS uses a dense liquid (e.g., magnetite suspension) to separate coal from waste rock based on density differences. High-density particles sink, while low-density coal floats, ensuring efficient separation.

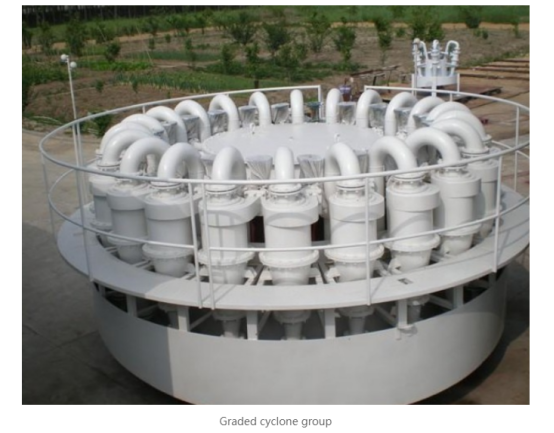

Graded cyclone group
2.Jigging
This method relies on pulsating water flow to stratify coal particles by density. Lighter coal rises to the top, while heavier impurities settle at the bottom. Jigging is cost-effective for coarse coal separation.
3. Froth Flotation
Froth flotation separates fine coal particles by exploiting differences in surface hydrophobicity. Air bubbles attach to coal particles, floating them to the surface, while hydrophilic impurities remain in the slurry.
4. Spiral Concentrators
Spiral separators use centrifugal force and gravity to sort coal particles. As slurry flows down a spiral trough, denser materials move outward, while lighter coal concentrates inward.

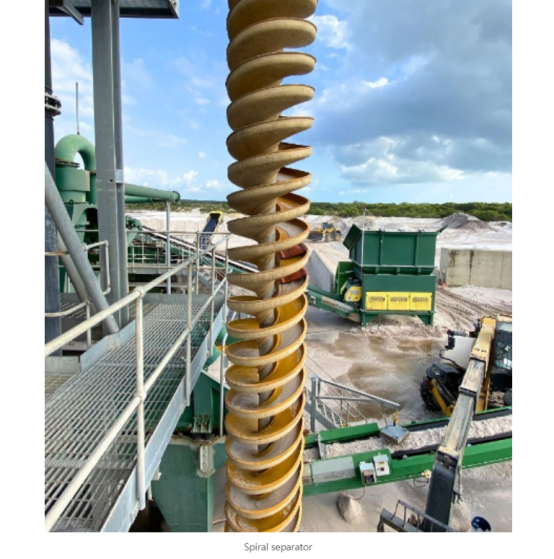

Spiral separator
5. Screening & Size Classification
Screening divides coal into different size fractions, allowing for targeted processing. Vibrating screens and sieves help remove oversized rocks and undersized fines.
6. Magnetic Separation
For coal containing magnetic impurities (e.g., pyrite), magnetic separators effectively remove these contaminants, enhancing coal purity.
7.X-ray dry selection
In the coal mining and preparation industry, X-ray dry sorting (XRT) has emerged as an innovative, efficient, and environmentally friendly method for coal separation. Unlike traditional wet processing techniques, XRT eliminates the need for water, reducing costs and environmental impact while maintaining high accuracy.
Why These Methods Matter
Efficient coal separation reduces ash content, improves combustion efficiency, and minimizes environmental impact. Choosing the right method depends on coal type, particle size, and desired product quality.
