Mobile Screening machine Manufacturer from China

Get a Free Quote

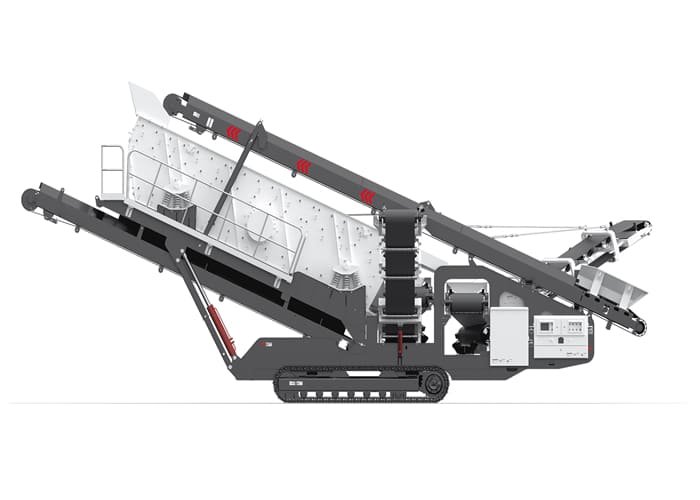

AMST Series Crawler Mobile Product Screening Workstation

Tsx AMST series crawler mobile product screening workstation is suitable for screening various types of materials and equipped with three-deck product screen that can accurately obtain the particle size.

By choosing different screens and screening angles to meet the screening needs of various users,it can be widely used in the fields of post-crushing screening in mines,screening of sand and gravel a ggregates,and recycling of construction waste,etc.It is highly versatile,with asturdy and compact structure.

AMST Series

Our Mobile Screening machine

Designed for peak performance, our screens offer a range of features that translate directly into operational benefits for your business.

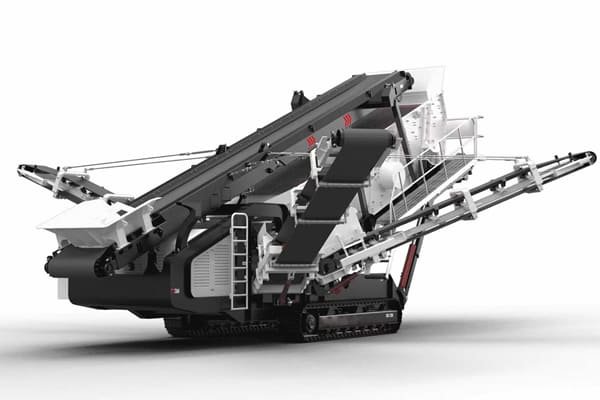

Mobile Screening machine

The feeding equipment offers theoption ofa feeder/a large hopper with grizly screen,Compact structure for easy relocation and transportation.

Get a Free Quote

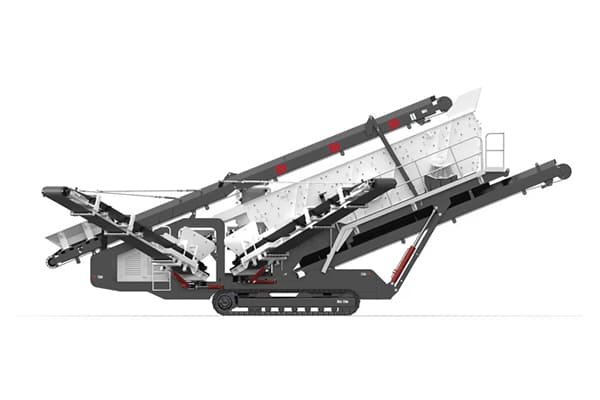

Mobile Screening machine

A large screening area on the product screen ensures an ideal distribution of materials across the screen deck.

Get a Free Quote

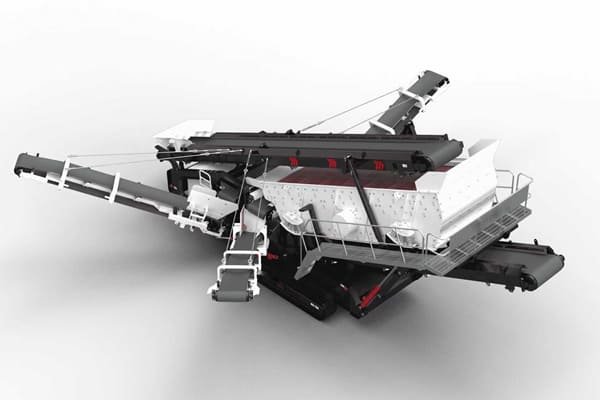

Mobile Screening machine

Anextra-wide feeding conveyor belt ensureseficient utilization of the screen deck,The screen deck is optional and easy to maintain and replace.

Get a Free Quote

AMST Series Technical Highlights

Key specifications that ensure our AMST Series Technical Highlights meet your operational demands.

AMST1548
AMST1865E
AMST2065E
Drive type
Full hydraulic drive
oil-electric hybrid drive
Oil-electric hybrid drive
Feed conveyor
LxW
3960X1060
--
--
Power
11
--
--
Feeding conveyor
Size of screen deck-W×L
1520X4870
1800X6500
2000X6500
Number of screen decks
3
3
3
Power
15
15
15
Oversize material conveyor
LxW
8530X610
5600X650
5600X650
Discharge height
4500
3400
3300
Power
5.5
5.5
5.5
Large Material Conveyor
LxW
9140X610
5700X650
5700X650
Discharge height
4700
3300
3300
Power
5.5
5.5
5.5
Middle material conveyor
LxW
9140X610
7600X650
7600X650
Discharge height
4700
3400
3400
Power
5.5
5.5
5.5
Fine material conveyor
LxW
6400X1200
7550X1000
7550X1000
Discharge height
4000
3510
3600
Power
7.5
7.5
7.5
Whole machine
Handling capacity
250-300
150-280
180-350
Transport dimensions-LxWXH
15880X3520X3500
13800X3630X3850
4800X1630X3850
Total Total weight
32
30
33
Total Power
83
93
120
Feeding equipment

Feeding capacity
350
280
500
Feeding height
3400
2100
2100
Hopper volume
8
0.7
0.7

*Specifications may vary based on model and customization. Contact us for detailed data sheets.

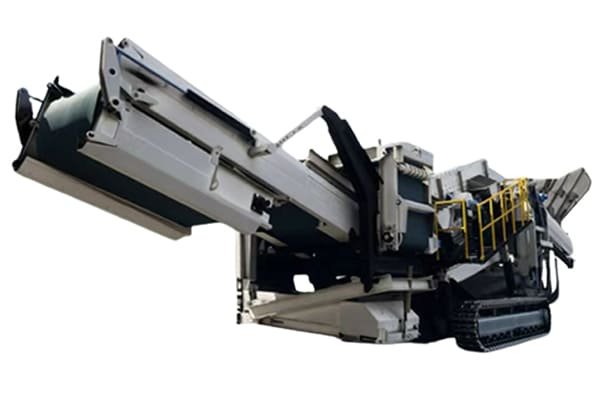

AS Series Crawler Mobile Screening Workstation

AS series crawler mobile screening workstation is mainly used for screening before primary crushing,through the selection of different specifications of double-deck screen deck to achieve the corresponding screening effect,screening parameters are easy to set and maintain.

The transition between working and transportation states is flexible.It can play an important role in in the screening of materials such as ores,sand,and aggregates,etc

AS Series

AS Series Technical Highlights

Key specifications that ensure our AS Series Technical Highlights meet your operational demands.

AS500H
AS500E
Drive type
Fuly hydraulic drive
Oil-electric hybrid drive
Plate feeder
LxW
3575X1200
3575X1200
Power
24
15
Feeding conveyor
LxW
13500X1200
13500X1200
Power
15
15
Screen
Screen deck size-WxL
1800X4200
1800X4200
Number of screen decks
2
2
Power
21.6
15
Transfer conveyor
LxW
4400X1200
4400X1200
Power
10.8
7.5
Fine material conveyor
LxW
7100X800
7100X800
Discharge height
3400
2000
Installation angle
12-24°
12-24°
Power
8.6
11
Feeding equipment

Feeding capacity
600
500
Feeding height
2700
3700
Hopper volume
5-9
5-9

*Specifications may vary based on model and customization. Contact us for detailed data sheets.

Our Parts and Services

Vibrating Screens Shock Absorber Spring

Vibrating Screens Shock Absorber Spring

Vibrating screen shock springs dampen vibrations,isolate the screen frame,and maintain stability.

Get a Free Quote

ZDQ+Series+Vibration+Exciter

ZDQ Series Vibration Exciter

TSX SCREEN ZDQ series exciter is using advanced technology to create professional high-performance, counter rotating, linear motion exciters.

Get a Free Quote

Stainless Steel Profel Panel With Polyurethane Frame

Stainless Steel Profel Panel With Polyurethane Frame

The filters are specially designed to effectively separate solids and liquids.

Get a Free Quote

Stainless Steel Bend Sieve

Stainless Steel Bend Sieve

TSX stainlesssteel bend sieve isusedspecial stainlesssteel material to ensure both high milling-resistan andnomagnetisn.

Get a Free Quote

Stainless Steel Perforated Platel Punch Hole Screen Panel With Polyurethane Frame

Stainless Steel Perforated Platel Punch Hole Screen Panel With Polyurethane Frame

It has excellent durability, corrosion resistance and high precision in various industrial screening.

Get a Free Quote

Services

Services

Maintenance, shutdowns and repairs,Modernization upgrades and retrofits,Process optimization and connected services,Life Cycle Services,Training Services

Get a Free Quote

Our Factory, Packaging and Shipping

Factory Workshop View 1

Tianjin Production Base

Equipped with advanced CNC machines for high-precision component manufacturing, ensuring superior quality.

Factory Assembly Line

Dedicated Assembly Line

Our skilled technicians meticulously assemble each vibrating screen, adhering to strict quality control protocols.

Screen Plate Workshop

Screen Plate Workshop

We use advanced technologies such as laser cutting to customize wear-resistant and corrosion-resistant sieve plate products for the mining, metallurgy, building materials and other industries.

Vibrator workshop

Vibrator workshop

The workshop is equipped with a large CNC machining center and standardized production safety regulations, providing an intelligent and efficient working environment for the manufacture of precision vibrators.

Rigorous Packaging

Rigorous Packaging

Each device undergoes thorough testing in our dedicated quality control laboratory to ensure performance and reliability, and is then packaged and crated for shipping.

Safe Shipping

Safe Shipping

With our Last Mile Guarantee, your vibrating screen will be in the best hands from the loading dock to its final destination."
