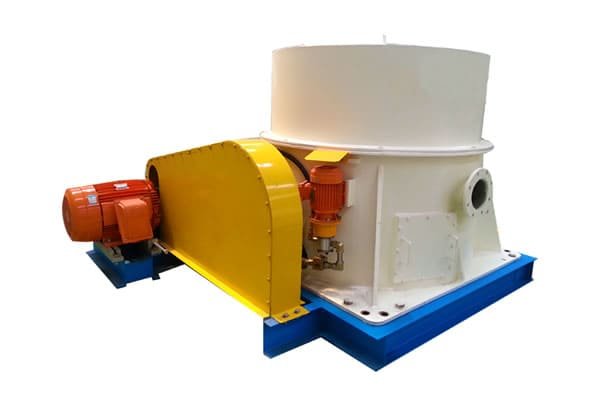

TSX vertical scraper unloading centrifuge is suitable for the separation of solid-liquid two-phase suspensions containing solid particles with a particle size greater than 10μm. Generally speaking, it is more appropriate to use this machine when the weight concentration of solid phase particles in the suspension is greater than 25%.
Therefore, vertical scraper centrifuges have been widely used in coal, chemical, light industry and other industries.
Model |
Capacity( th ) |
FeedingSize( mm ) |
SurfaceMoisture( %< ) |
Diameterof Basket( mm ) |
BasketAperture( mm ) |
DriveMotor( kw ) |
PumpMotor( kw ) |
Overall DimensionAxBxC( mm ) |
Weight(t) |
|---|---|---|---|---|---|---|---|---|---|
AML1000 |
40-60 |
0-2 |
16-24 |
1000 |
0.2-0.5 |
55 |
0.75 |
2919x2916x1915 |
5 |
AML1200 |
50-70 |
0-2 |
16-24 |
1200 |
0.2-0.5 |
55 |
0.75 |
2919x2916x1915 |
5.25 |
*Specifications may vary based on model and customization. Contact us for detailed data sheets.

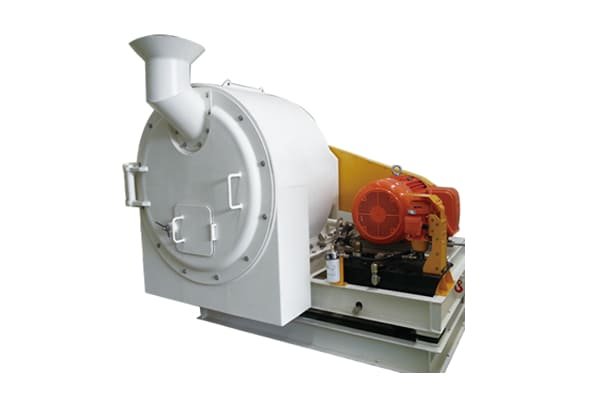

Less moving parts in the TSX ML series centrifuge design means efficient, reliable operation, and lower downtime and maintenance costs.High rotate speed, slime recovery, and drainage efficiency.All moving parts are enclosed in a protective cover, easy to operate reliably.
An independent lubrication system is used for lubrication, cooling, and cleansing. The system is equipped with an oil circuit protection function to ensure the operation safety of the system with less maintenance.
Model |
Capacity( th ) |
FeedingSize( mm ) |
SurfaceMoisture(%<) |
Diameterof Basket( mm ) |
BasketAperture( mm ) |
DriveMotor( kw ) |
PumpMotor( kw ) |
Overall DimensionAxBxC(mm) |
Weight(t) |
|---|---|---|---|---|---|---|---|---|---|
ML900 |
40-45 50-60 60-70 |
0.15-0.6 0.15-1.0 0.5-3.0 |
12-24 |
900 |
0.2-0.5 |
55 |
0.75 |
2329X2459X2098 |
4.2 |
ML1000 |
50-55 60-70 75-85 |
0.15-0.6 0.15-1.0 0.5-3.0 |
12-24 |
1000 |
0.2-0.5 |
75 |
0.75 |
2329X2459X2098 |
4.7 |
ML1200 |
60-75 75-85 85-110 |
0.15-0.6 0.15-1.0 0.5-3.0 |
12-24 |
1200 |
0.2-0.5 |
75 |
0.75 |
2348X2634X2237 |
5.3 |
ML1300 |
60-75 75-85 85-110 |
0.15-0.6 0.15-1.0 0.5-3.0 |
12-24 |
1300 |
0.2-0.5 |
90 |
0.75 |
2406X2836X2308 |
5.8 |
*Specifications may vary based on model and customization. Contact us for detailed data sheets.
WSL Horizontal Vibrating Centrifuge is used for dewatering in the 1 mm to 50 mm class. This centrifuge is easy to operate and maintain and is very reliable thanks to the system with overhead vibrator. These centrifuges have a maximum production rate of 400 t/h.
Horizontal vibration centrifuge is not only suitable for coal, it can also be used for the dehydration and separation of fine grain tailings, medium ore, coarse mud, fine gravel, sand and potash fertilizer dissolved residues.
Model |
Capacity( th ) |
FeedingSize( mm ) |
SurfaceMoisture(%<) |
Diameterof Basket( mm ) |
BasketAperture( mm ) |
DriveMotor( kw ) |
Vibrating Motor( kw ) |
PumpMotor( kw ) |
Overall DimensionAxBxC(mm) |
Weight(t) |
|---|---|---|---|---|---|---|---|---|---|---|
WSL1100 |
120-150 |
0-50 |
6-9 |
1100 |
0.2-1.5 |
30 |
3.0x2 |
0.75 |
2507X2817X1864 |
6.5 |
WSL1200 |
150-175 |
0-50 |
6-9 |
1200 |
0.2-1.5 |
37 |
3.0x2 |
0.75 |
2507X2817X1864 |
6.7 |
WSL1300 |
180-210 |
0-50 |
6-9 |
1300 |
0.2-1.5 |
37 |
3.0x2 |
0.75 |
2722x2944x2011 |
8.3 |
WSL1400 |
210-250 |
0-50 |
6-9 |
1400 |
0.2-1.5 |
45 |
3.0x2 |
0.75 |
2722x2944x2011 |
8.6 |
WSL1500 |
300-350 |
0-50 |
6-9 |
1500 |
0.2-1.5 |
55 |
5.8x2 |
0.75 |
3208x3135x2231 |
10.8 |
WSL1650 |
350-400 |
0-50 |
6-9 |
1650 |
0.2-1.5 |
75 |
5.8x2 |
0.75 |
3208x3135x2231 |
11.5 |
*Specifications may vary based on model and customization. Contact us for detailed data sheets.
Equipped with advanced CNC machines for high-precision component manufacturing, ensuring superior quality.
Our skilled technicians meticulously assemble each vibrating screen, adhering to strict quality control protocols.
We use advanced technologies such as laser cutting to customize wear-resistant and corrosion-resistant sieve plate products for the mining, metallurgy, building materials and other industries.

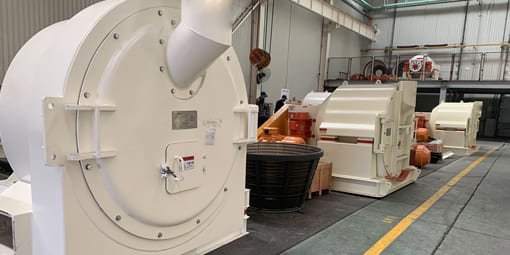

Centrifuge Production Workshop Equipped with a large CNC machining center and standardized safety production procedures, the workshop provides an intelligent and efficient working environment for the production of precision centrifuges.
Each device undergoes thorough testing in our dedicated quality control laboratory to ensure performance and reliability, and is then packaged and crated for shipping.
