WSL Horizontal Vibrating Centrifuge

WSL Horizontal Vibrating Centrifuge

WSL Horizontal Vibrating Centrifuge is used for dewatering in the 1 mm to 50 mm class. This centrifuge is easy to operate and maintain and is very reliable thanks to the system with overhead vibrator. These centrifuges have a maximum production rate of 400 t/h.

Send Inquiry
Description
Argument
Products Description

Feature :Horizontal vibration centrifuge is not only suitable for coal, it can also be used for the dehydration and separation of fine grain tailings, medium ore, coarse mud, fine gravel, sand and potash fertilizer dissolved residues. The centrifuge adopts the domestic leading level of sieve basket, which has the advantages of large opening rate, not easy to plug, high dehydration efficiency, high strength, easy deformation, wear resistance, long service life, convenient disassembly, large workload, small power consumption and so on.

Rotating part :

Adopt imported SKF special bearing, large bearing, low noise. The dip angle and end surface of the sieve basket are optimized for easy feeding, convenient disassembly and disassembly.The rotary connection surface is designed by a professional double sealing system, with good sealing effect and long service life

Oscillating component :

Two vertical installed vibration motors are used as vibration sources, stable vibration, stable amplitude, simple structure, convenient adjustment,short maintenance time, less maintenance amount, no oil leakage, reasonable layout, reliable performance characteristics.



Part of the body :

Box-type structure design, all easy to wear parts, are inlaid with imported high-strength wear-resistant ceramic tiles, CNC machine tool precision machining each assembly surface, fully ensure the equipment installation accuracy and coaxial degree. All welding parts are qualified and annealed to eliminate stress. The overall structure has high strength, good stability, compact structure, and large safety factor.



lubrication system :

Use the dilute oil concentrated pressure circulation lubrication system. The system has lubrication, cooling, oil purification and other functions, less lubrication point, low noise, low maintenance amount, as long as regular refueling, oil can be changed.Palace lubrication using imported automatic oil injector, automatic refueling, maintenance-free type.







Click to view product catalog







Tags:

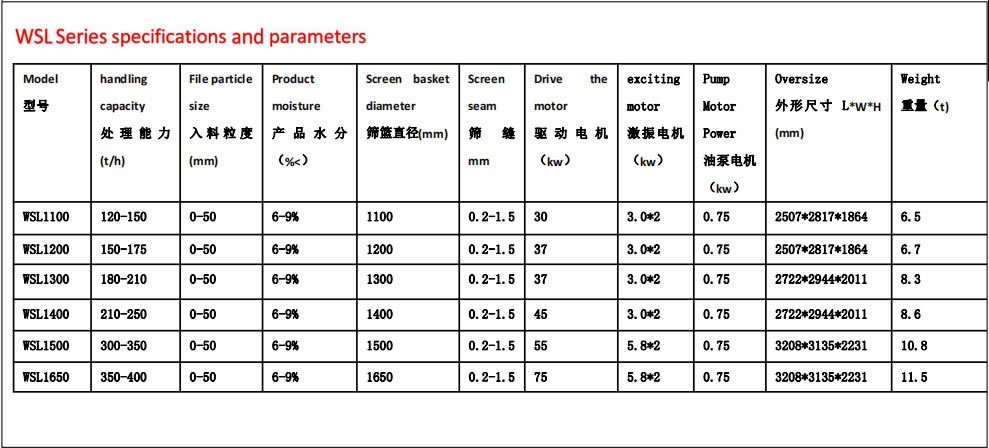

Technical parameter
Centrifuge Screen Baskets

Centrifuge Screen Baskets

Centrifuge Screen Baskets

Centrifuge Screen Baskets

Centrifuge Screen Baskets

Centrifuge Screen Baskets

WSL Horizontal Vibrating Centrifuge adopts the internationally advanced screen basket, which has the advantages of large opening rate, non-clogging screen seam, high dehydration efficiency, high strength, non-deformation, wear resistance, long service life, and easy disassembly and assembly.
