Products Description
Wedge wire screens are primarily used for filtration and separation processes across various industries. Their unique design, featuring V-shaped profile wires, allows for efficient flow while effectively trapping solids.

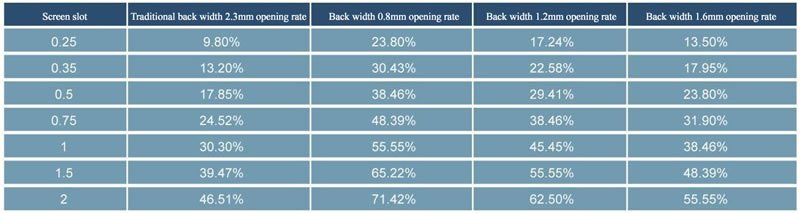

1.High Open area. The open area is more than 1.6-2.5 times higher than that of traditional sieve bend panel
2.High wear resistance : in addition to material roling (or sliding) wear,there is also leakage wear. As far as the sieve bend panel isconcered, the leakage wear is greater than the surface wear, and the eficient sieve bend panel just makes up for the performance that thetraditional sieve bend panel does not have, which not only increases the screening rate, but also extends the service life.
3.Low energy consumption: The open area is increased, the vibration screen can completely stop the vibration motor, and the dehydrafionefect can also be achieved, the weight of the screen is reduced, the motor load rate is reduced, and the power consumption is reduced.eLight weight: Easy to change, more convenient operation of staff, further improve personal safety.
4.The cost can be saved when the equipment is selected: High open area screen is selected, and vibration screen can be no longe!considered when the equipment is selected.
5.In a word, high eficiency sieve bend panel has the advantages of high open area, ight weight, good wear resistance and long service lifeIn particular, the open area is more than 1.6 times higher than that of tradilional sieve bend panel. and the efiect of deslimalion . dehvdratiorand dissociation is good. Especially, after instalation and use, high eficiency sieve bend can completely replace the work of vibrationscreen.
Tags:
Technical parameter
Sieve Bends for Wedge Wire Screen
WSL Series Horizontal Vibrating Centrifuges
AML vertical scraper centrifuge
ML Series Horizontal Scraper Centrifuges
Sieve Bends and Vibrating Centrifuges play a key role in improving the efficiency of the Wedge Wire Screen, providing the necessary movement to promote the separation of solids from liquids. The vibrations it produces promote the flow of material through the Wedge Wire Screen. This dynamic movement helps prevent clogging and ensures a steady flow of material, maximizing the performance of the Wedge Wire Screen.
