Circular Motion Vibrating Screen

Circular Motion Vibrating Screen

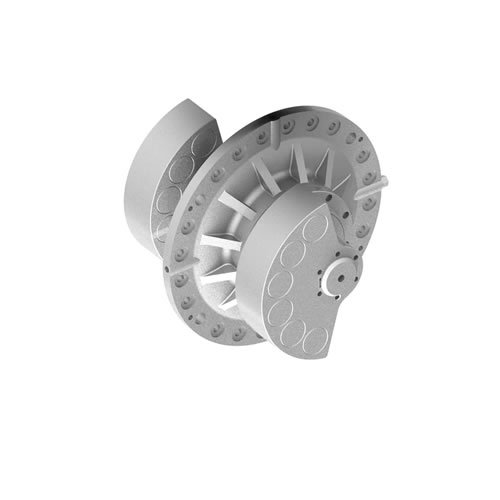

Working principle of Circular Motion Vibrating Screen: The circular vibrating screen adopts RDQ series circular vibrator and offset block to adjust the amplitude. The screen body vibrates in an elliptical trajectory through the circular vibrator, so that the material is thrown back on the screen surface, improving the screening efficiency.
Large processing capacity: It can quickly process a large amount of materials and is suitable for large-scale production needs.
Multi-layer screening: It can be designed into a multi-layer structure, and materials of different particle sizes can be graded at the same time, which improves the screening efficiency

Send Inquiry
Description
Argument
Products Description

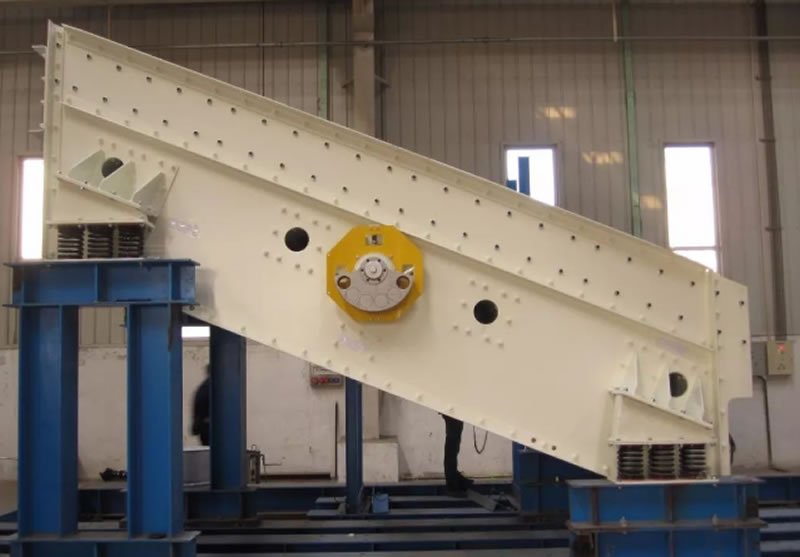

TSX SCREEN is a multi-layer, high-efficiency new type of vibrating screen, and its moving trajectory is circular. Orui circular vibrating screen uses excitation unit and counterweight to adjust the amplitude, with many screening specifications, and can be used for screening products in industries such as coal mines.

Working principle:

After the screen is started, the excitation unit drives the vibrating screen body to move in a circular motion. During this period, materials smaller than the screen hole diameter fall through the screen hole to the lower layer and become screened materials. Materials larger than the screen hole diameter are continuously jumped, turned over and loosened before being discharged from the discharge port, and finally the screening work is completed.

TSX SCREEN has the following technical characteristics and advantages:

TSX SCREEN has appropriate and reasonable settings for vibration parameters such as amplitude, frequency and excitation force. Each component has high structural rigidity, strong excitation force, high screening efficiency, large material handling capacity, the screen hole is not easy to be blocked, the vibration noise is small, maintenance is convenient, the resonance zone is stable, the service life is long, and the performance is safe and reliable.





Tags:

Technical parameter
Circular Motion Vibrating Screen

Circular Motion Vibrating Screen

Features of Circular Motion Vibrating Screen: High screening efficiency: Since the screen box vibrates strongly, the phenomenon of material blocking the screen holes is reduced, making the screen have higher screening efficiency and productivity. Therefore, for materials with small particle size that are easy to block the screen holes, the circular vibrating screen can also complete the screening better.
