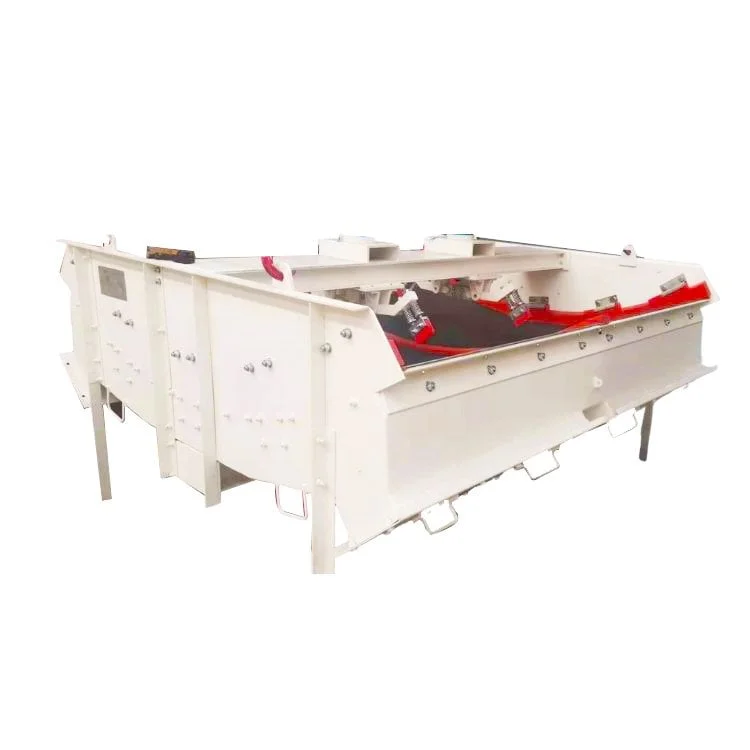

Products Description
Sieve Bend is suitable for dehydration and demediation of foamy coal and coal slime in coal mines. It can also be used for dehydration of non-coal fine sand. The feed size is less than 5mm
|
item
|
New Super Wet Sand Coal Sieves Bend Screens Vibrating Dewatering Machine
|
|
Applicable Industries
|
Manufacturing Plant, Construction works , Energy & Mining, Other
|
|
Showroom Location
|
South Africa, Australia
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
New Product 2021
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Motor, Exciter
|
|
Condition
|
New
|
|
Type
|
Sieve Bends Vibrating Screen
|
|
Application
|
Ore,Mining,Coal
|
|
Place of Origin
|
Tianjin China
|
|
Brand Name
|
TSX
|
|
Voltage
|
380V 660V
|
|
Dimension(L*W*H)
|
2308*4016*2994
|
|
Weight
|
4700KG
|
|
Video outgoing-inspection
|
Available
|
|
Color
|
Red Yellow Blue and Other colors you want
|
|
Function
|
Screening,Separation,Dewatering
|
|
Material
|
Steel
|
|
Feature
|
High Separating,Effective Filtering Area & Long Working Life
|
|
Sieve Bends Technical data
|
||||||
|
Model
|
Model of screen deck
|
Power(kw)
|
Capacity(t/h)
aperture0.5mm |
Feed size (mm)
|
Weight(t)
|
Overall dimension(mm)
|
|
AVR0945
|
900×2150mm
|
0.37
|
90
|
0-5mm
|
1.5
|
1660*100*2385
|
|
AVR3960
|
3900×2320mm
|
0.45
|
550
|
0-5mm
|
4.7
|
2308*4016*2994
|
|
AXR0945
|
900×2150mm
|
无
|
80
|
0-5mm
|
1.4
|
1660*100*2385
|
|
AXR3960
|
3900×2320mm
|
无
|
480
|
0-5mm
|
4.5
|
2308*4016*2994
|
|
AGVR0945
|
900×2150mm
|
0.37
|
90
|
0-5mm
|
1.5
|
2155*1266*2642
|
|
AGVR3960
|
3900×2320mm
|
0.45
|
550
|
0-5mm
|
4.3
|
2300*4460*2680
|
|
AGXR0945
|
900×2150mm
|
无
|
80
|
0-5mm
|
1.4
|
2155*1266*2642
|
|
AGXR3960
|
3900×2320mm
|
无
|
480
|
0-5mm
|
4.1
|
2300*4460*2680
|
|
Note: The mesh size can be customized as your request. The layer also can make as your requirement.
|
||||||
Tags:
Technical parameter
Bend Sieve
Bend Sieve
Bend Sieve
High Open area ：The open area is more than 1.6-2.5 times higher than that of traditional sieve bend panel
High wear resistance : In addition to material roling (or sliding) wear, there is also leakage wear. As far as the sieve bend panel isconcerned, the leakage wear is greater than the surface wear, and the eficient sieve bend panel just makes up for the performance that thetraditional sieve bend panel does not have, which not only increases the screening rate, but also extends the service life.
Low energy consumption : The open area is increased, the vibration screen can completely stop the vibration motor, and the dehydrationefect can also be achieved, the weight of the screen is reduced,the motor load rate is reduced, and the power consumption is reduced.
Light weight : Easy to change, more convenient operation of staff, further improve personal safety.
The cost can be saved when the equipment is selected : High open area screen is selected, and vibration screen can be no longerconsidered when the equioment is selected
