In the mining crushing production line, the vibrating screen is like a precise “sorter” responsible for separating ores of different particle sizes into designated processes. Its core principle is to generate three-dimensional vibrations through motor drive, so that the materials are layered and screened on the screen. The screening efficiency of modern high-end vibrating screens can reach 98% (that is, 98% of the target particle size materials are accurately classified). Behind this number is the precise combination of mechanical design and material science.

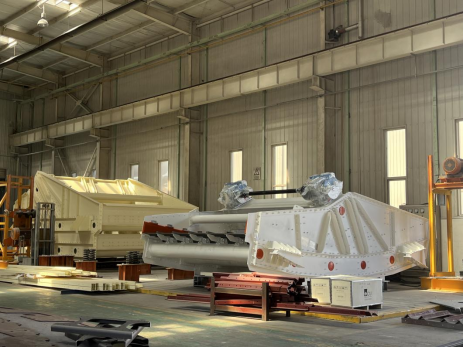

Mining Vibrating Screens
Three major elements to achieve high precision
Optimization of motion trajectory
Adopting elliptical/linear composite vibration mode, taking into account processing speed and screening accuracy
Adjustable amplitude of 0.5-8mm, suitable for different working conditions from iron ore (dry material) to clay (wet material)
Screen dynamics
Multi-layer polyurethane screen adopts stepped aperture design (such as upper layer 10mm → middle layer 6mm → bottom layer 3mm)
Anti-blocking hole structure increases the screening rate of fine particles <0.075mm by 40%
Energy transfer system
ISO 10816 certified vibration motor ensures that 97.5% of kinetic energy is converted into effective screening energy
Rubber spring shock absorber controls invalid vibration loss below 2%

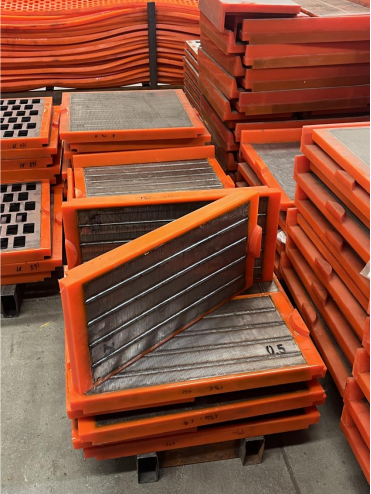

Stainless Steel Profel Panel With Polyurethane Frame
Performance test under ISO standards
According to the ISO 9001 quality system and ISO 14001 environmental management system certification requirements, 98% screening efficiency must be strictly verified:
Laboratory test: Use standard sand samples (particle size distribution 0.1-20mm) for continuous operation for 72 hours
On-site calibration: Laser particle size analyzer real-time comparison of feed/oversize/undersize
Energy efficiency audit: Power consumption per ton of ore processing ≤ 0.8kWh (actual value 0.73kWh)
Invisible benefits beyond “screening”
Resource saving: Every 1% increase in efficiency ≈ 500 tons of ore mismatch loss reduced annually
Energy consumption comparison: Under the same processing capacity, the new vibrating screen saves 22% energy compared with traditional equipment
Environmental compliance: Closed structure + negative pressure dust removal design meets ISO 29400 dust emission standards.
When we talk about vibrating screens, we are essentially discussing how to use mechanical vibration to simulate the sorting wisdom of nature. With the in-depth application of material fatigue analysis (ISO 12107) and computational fluid dynamics (CFD), this seemingly simple screening action is becoming a key sensor node in the process of intelligent mining.
