In the field of mineral processing, screening and dewatering are critical steps that determine production efficiency and resource recovery. Traditional screening equipment often struggles with high-moisture or sticky minerals, while the flip-flop screen has emerged as a “high-efficiency guardian” in modern mineral processing, thanks to its unique dynamic screening principle and superior dewatering capabilities.

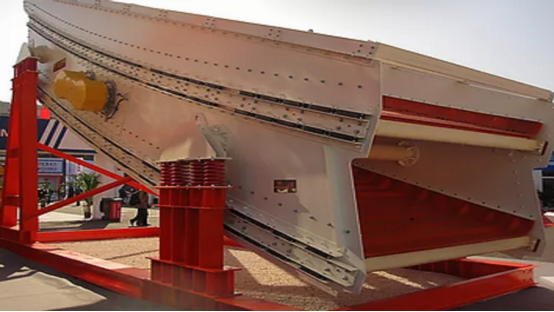

Flip-Flop screen – the necessary choice for mineral screening

This article provides an in-depth analysis of the flip-flop screen’s structural design, working principle, and its value across multiple industries.

Structural Design: The Perfect Fusion of Elasticity and Dynamics

The core of the flip-flop screen lies in its elastic screen panels and dynamic tensioning system, which enable efficient screening through high-frequency stretching and relaxation. Key structural features include:

• Elastic Screen Panels:
  Made of polyurethane or rubber, these panels offer excellent wear resistance and fatigue resistance. The screen apertures (typically 0.5–10 mm) can be customized to suit different mineral particle sizes.
• Dual-Shaft Drive System:
  Eccentric shafts generate high-frequency vibrations, continuously stretching and relaxing the screen panels to prevent material clogging and enhance screening efficiency.
• Modular Design:
  The screen panels are segmented for easy replacement in case of localized wear, significantly reducing maintenance costs.

Working Principle: Dynamic Screening and Efficient Dewatering

The flip-flop screen achieves high-efficiency separation of minerals and moisture through unique dynamic motion:

1. Initial Screening Phase:
   As the mineral slurry enters the screen surface, fine particles and moisture quickly pass through the apertures under high-frequency vibration, forming a preliminary dewatered layer.
2. Secondary Separation Phase:
   Coarse particles continuously tumble due to the stretching and relaxing motion of the screen, further removing moisture before being discharged from the end of the screen.

The entire screening process takes only seconds, reducing moisture content to below 10%—far surpassing traditional vibrating screens.

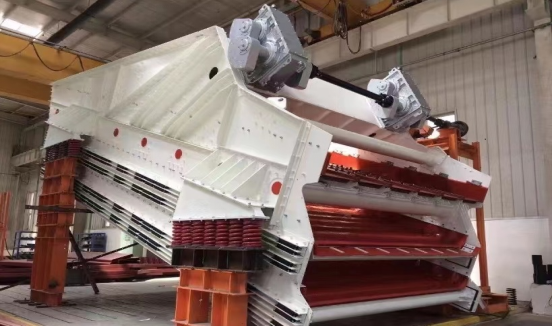

Flip-Flop screen

Applications: Excellence Across Multiple Industries

Thanks to its adaptability and stable performance, the flip-flop screen excels in the following fields:

• Coal Industry:
  Used in coal washing plants for dewatering clean coal, increasing calorific value, and reducing transportation costs.
• Metal Ore Processing:
  Handles tailings from iron, copper, and other ores, enabling efficient dewatering and resource recovery.
• Sand and Aggregates:
  Combines grading and dewatering in one step, meeting construction sand standards.
• Environmental Protection:
  Dewaters sludge in wastewater treatment plants, reducing energy consumption in subsequent drying processes.

Future Trends: Smart Technology and Material Innovations

With technological advancements, flip-flop screens are evolving toward smarter and more durable solutions:

• Smart Monitoring Systems:
  Sensors track screen conditions and material flow in real time, automatically adjusting vibration frequency for optimized efficiency.

• Advanced Materials:
  Nano-reinforced polyurethane or ceramic composites extend screen life to more than three times that of traditional materials.
• Customized Designs:
  High-angle screen surfaces are being developed for high-viscosity or specialty minerals, expanding application possibilities.

The flip-flop screen, with its efficiency, durability, and intelligent features, has become an indispensable piece of equipment in mineral processing. As technology continues to advance, it will further solidify its role as a “high-efficiency guardian,” supporting sustainable resource recovery and environmental protection across industries.
