Products Description
Designed to meet the tough demands of the mining industry, the TSX Screen Vibrating Rock Screen provides efficient and reliable ore separation. Using a unique vibrating motion, these screens can effectively process a wide range of materials including ores, aggregates and coal.
|
item
|

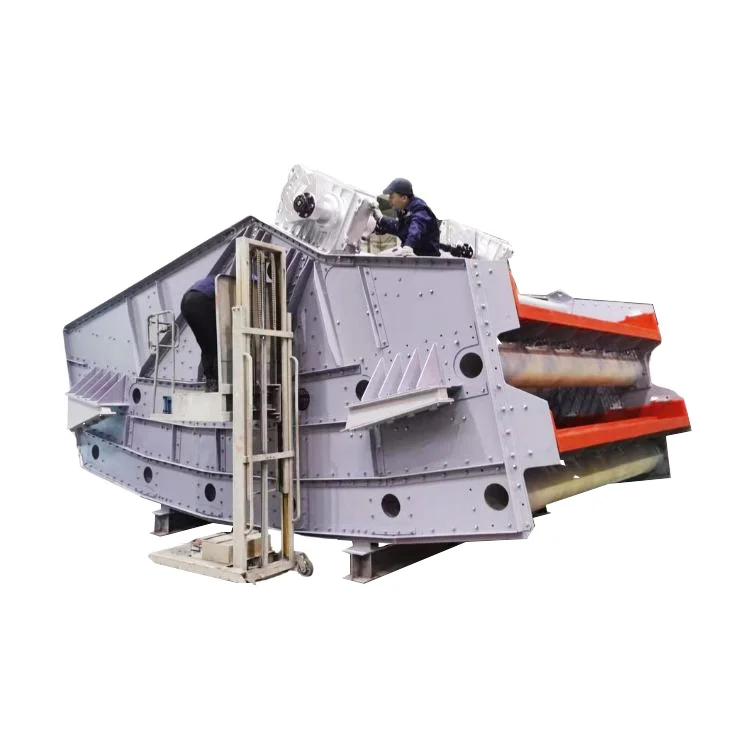

Multi Deck Banana Vibrating Screen Ore Classifier Retangular Mechanical Sieve
|
|
Applicable Industries
|
Manufacturing Plant, Construction works , Energy & Mining, Other
|
|
Showroom Location
|
South Africa, Australia
|
|
Video outgoing-inspection
|
Provided
|
|
Machinery Test Report
|
Provided
|
|
Marketing Type
|
New Product 2021
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Motor, exciter
|
|
Condition
|
New
|
|
Type
|
banana vibrating screen
|
|
Application
|
Ore
|
|
Place of Origin
|
China
|
|
Brand Name
|
TSX
|
|
Voltage
|
380V;660V
|
|
Dimension(L*W*H)
|
9438*6122*5837
|
|
Weight
|
59280KG
|
|
Warranty
|
1 Year
|
|
Feature
|
High Screening Efficiency
|
|
capacity
|
>1400t/h
|
|
Material
|
Q235B
|
|
Delivery Time
|
35days
|
|
Layer(s)
|
2 Layers
|
|
Color
|
costomized
|
|
Surface treatment
|
Paint
|
|
MOQ
|
1set
|
|
Usage
|
Separation Screening
|
|
Banana Screens Technical Data
|
|||||||
|
Model
|
Layer
|
Model of screen deck
|
Power(kw)
|
Capacity(t/h)
50mm |
Feed size (mm)
|
Weight(t)
|
Overall dimension(mm)
|
|
ABS1848
|
1
|
1800×4800mm
|
1*18.5kw
|
>200
|
0-300mm
|
6.583
|
5651*2630*2714
|
|
ABS1861
|
1
|
1800×6100mm
|
1*22kw
|
>260
|
0-300mm
|
7.208
|
6833*2610*2818
|
|
ABS2461
|
1
|
2400×6100mm
|
1*22kw
|
>300
|
0-300mm
|
8.067
|
6853*3216*2786
|
|
ABS3061
|
1
|
3000×6100mm
|
1*30kw
|
>350
|
0-300mm
|
11.1
|
6862*3870*2847
|
|
ABS3661
|
1
|
3600×6100mm
|
1*30kw
|
>450
|
0-300mm
|
13.004
|
6867*4500*2895
|
|
ABS4261
|
1
|
4200×6100mm
|
1*55kw
|
>600
|
0-300mm
|
19.619
|
6895*5140*3482
|
|
ABS4985
|
1
|
4900×8500mm
|
1*90kw
|
>900
|
0-300mm
|
29.979
|
9093*5730*4280
|
|
ABD1848
|
2
|
1800×4800mm×2
|
1*22kw
|
>350
|
0-300mm
|
10.933
|
5567*2536*3786
|
|
ABD3061
|
2
|
3000×6100mm×2
|
1*55kw
|
>400
|
0-300mm
|
11.981
|
6852*3870*3907
|
|
ABD3661
|
2
|
3600×6100mm×2
|
1*55kw
|
>500
|
0-300mm
|
23.616
|
6929*4500*4095
|
|
ABD4985
|
2
|
4900×8500mm×2
|
2*90kw
|
>1400
|
0-300mm
|
59.280
|
9438*6122*5837
|
|
Note: The mesh size can be customized as your request. The layer also can make as your requirement.
|
|||||||
Tags:
Technical parameter

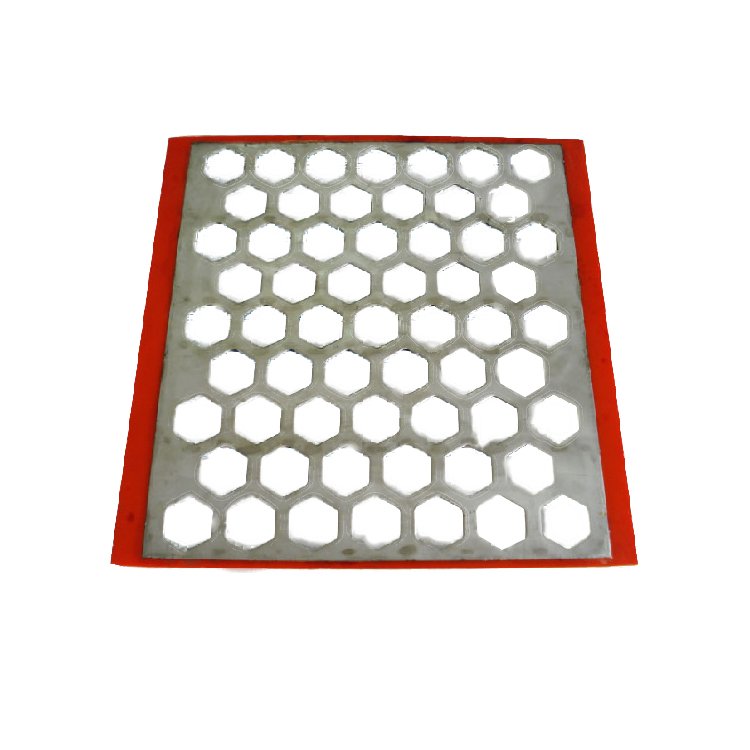

Stainless Steel Perforated Rock Vibrating Screen Mesh
Stainless Steel Woven Screen Mesh
Polyurethane Grid Screen Mesh
Flip-flop Vibrating Rock Screen Mesh
The vibrating screen mesh plays a key role in improving the efficiency of the Vibrating Rock Screen, providing the necessary movement to promote the separation of solids from liquids. The vibrations it produces promote the flow of material through the Vibrating Screen Mesh. This dynamic movement helps prevent clogging and ensures a steady flow of material, maximizing the performance of the Vibrating Rock Screen.
